State machine controls

Seven controls build every state machine in the product. Each entry here gives the lifecycle rule, the fields on the right rail, and the guide that shows the control doing its job.

The machine rail is the same in every graph. A Runtime card at the top reads the live machine: Active state, Active action, Last transition, Cause, Lifecycle, Pass, Exit handoff, Exit budget, Exit boundary, Destination, Machine result, Suspended, with a status pip reading RUNNING, PAUSED, or NO DATA. A Machine card follows, then a States list with its Add button, then the card for whatever you have selected.

A selected control starts with the shared identity header: a caption reading SELECTED · STATE, SELECTED · ACTION, SELECTED · TRANSITION, Any State, or reference · state machine, then the editable name. Rename there; no detail card repeats a name field. In Live every value in the rail is a reading, and the header says why: “Live locks graph authoring; values shown for reading”.

Root

Set the machine’s storage path and choose which mode activates first. Source token root.

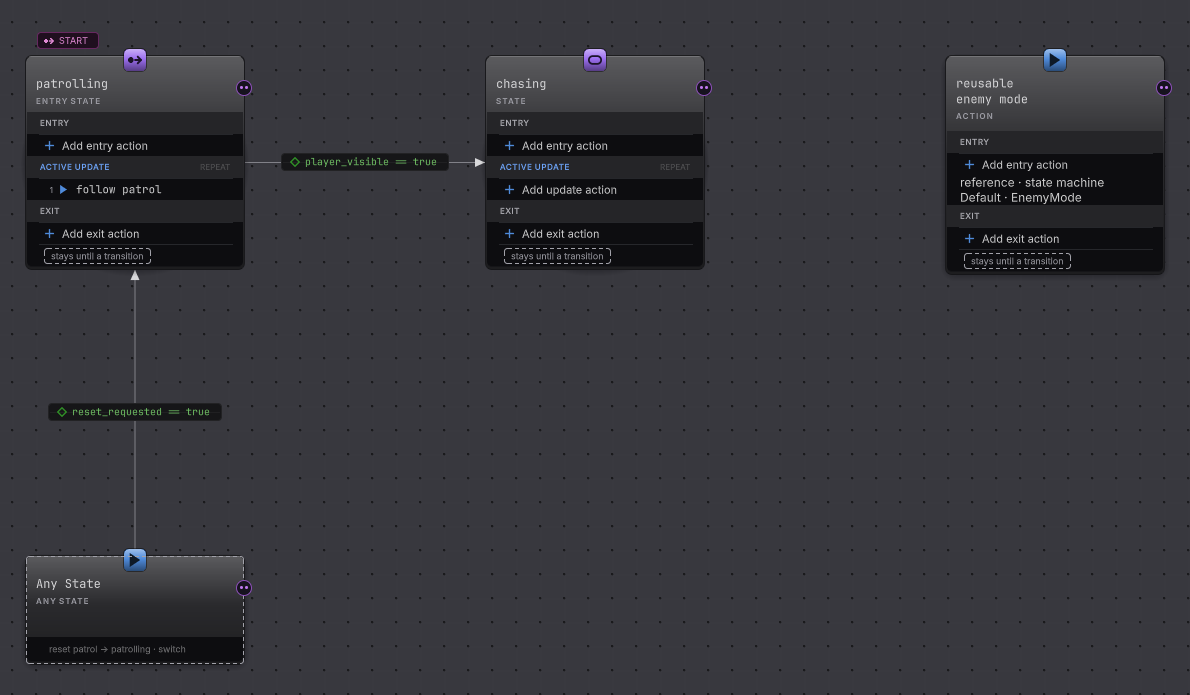

Figure 1. The enemy modes machine with its entry state marked START

Field	What to enter	Effect
Runtime path	GameObject or Entity.	Selects how the blackboard is stored. GameObject carries every declared type; Entity stores unmanaged data, so it carries value types only.
Entry state	Pick one authored state.	That state gets the first fresh activation. Exactly one entry state per machine, and authoring refuses zero or two.
States / Transitions	Read-only counts.	A structural summary. Neither is a limit.
States > Add	Adds an ordinary state.	Creates another mode without touching the current entry state.

The root has no parameter form of its own. It stays active until a state finishes the machine, a parent reference consumes the result, or a fault ends the run. The machine result is None, Success, Failure, or Faulted. A referenced child machine owns its own root and its own Any State.

Use it when you start a machine. Guide: state machines.

State and Entry State

Keep one mode’s work together and say how that mode ends. Source tokens state, entry.

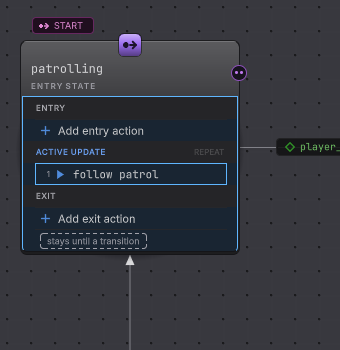

Figure 2. An Entry State card, with its three lifecycle groups

Lifecycle

Enter

Runs once per fresh activation. Active Update waits for it to succeed, and a Running row keeps the state in Entry. Entry carries no Lifetime.

Active

Direct action rows or one hosted behavior tree. In order advances one unfinished row per update; Together advances every unfinished row in the same update. Once holds the terminal result; Repeat starts a new pass on the next update.

Exit

One bounded update after a transition latches, before the destination's Entry. Unfinished work is canceled, unreached In order rows are skipped, and an empty Exit skips the update.

Finished

A terminal Active Update result no transition claimed. Completion then applies: Stay, Return, or Finish.

Field	What to enter	Effect
Entry state	Toggle on to make this the machine’s entry state.	Static ordinary states only. Turning the current one off directly is refused; choose another entry state instead.
Entry / Active Update / Exit rows	Add rows, drag to reorder, remove.	A row runs in the group that holds it. Empty groups are valid.
Run	In order or Together.	Appears when the group holds more than one row, or when Together is already authored. Group scheduling on one update, not threads.
Active Update Source	Actions or Behavior Tree.	A state holds one Active Update source. The switch to Behavior Tree waits until the update rows are gone.
Active Update Lifetime	Once or Repeat.	Once holds the terminal result for an On finish row. Repeat starts a new pass on the next update unless a transition latched.
Completion > When done	Stay, Return, or Finish.	Applied after the Active Update boundary when no transition matched.
Completion > Result	Success, Failure, or Use result.	Finish only. Use result publishes the terminal Active Update result as the machine result.
Precedence	Drag the outgoing rows.	First matching row wins, with Any State rows scanned ahead of local rows.

The rail’s Lifecycle card spells out the handoff: the transition fires, Exit is deferred, the source gets one Exit update, then the destination’s Entry begins on the following update. A state whose rows omit an explicit phase is a legacy action list: it maps into Active Update, the lifecycle controls stay read-only, and Upgrade lifecycle source converts it once, preserving the current order, Run, and Lifetime.

Use it for any named mode, as in the Platformer enemy (sample). Guide: states and lifecycle.

Transition

One ordered typed handoff, and the exact moment it may fire. Source token transition.

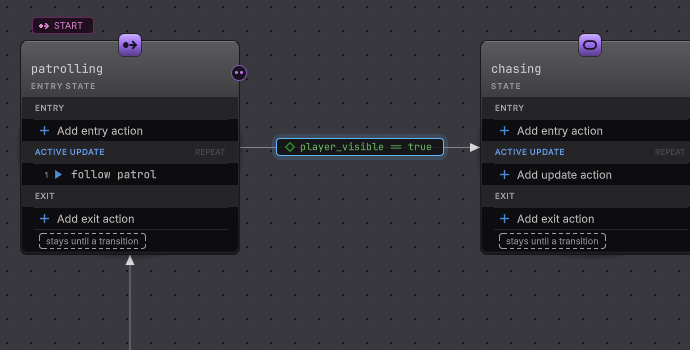

Figure 3. A transition between two states, its pill reading player_visible == true

Field	What to enter	Effect
From / To	Navigation readings.	Name the exact pair. A self transition reads · itself beside the destination.
Evaluate > When	Continuous, On finish, or On iteration.	Any State offers Continuous alone. A reference source offers Continuous or On finish. Ordinary states offer all three.
Evaluate > Result	Any, Success, or Failure.	On finish and On iteration only. Running never satisfies a filter, and a runtime fault is never read as authored Failure.
Trigger > Source	Conditions, Event, or None where legal.	Continuous requires Conditions or Event. None appears only when the finish or pass cadence can arm the row on its own.
Event field	One result event the source state exposes.	Event source only. A saved id that goes missing stays visible as missing; no same-named event is substituted.
condition group	All conditions or Any condition.	All stops at the first false row; Any stops at the first true row. Enabled once a predicate exists.
predicate variable	A readable graph value.	One row per predicate, evaluated in authored order.
predicate comparison	An operator legal for that type.	The set is <, <=, ==, !=, >=, >, narrowed by type: a bool keeps equality without ordering.
predicate compare with	Constant or Blackboard, then the typed literal or a compatible value.	One right operand per row. Both sides have to be declared and readable by this transition.
Kind > When taken	Switch or Push.	Switch cancels running work and discards suspended states; only the active state gets its bounded Exit. Push suspends the source at its current row without Exit.
Kind > On return	Resume or Re-enter.	Push only. Resume continues the preserved activation; Re-enter runs Entry and starts a fresh pass.
Re-entry > On re-entry	Restart or Resume.	Self transitions only. Restart uses Exit and Entry; Resume keeps progress and runs neither.
Precedence	Drag the row among its source’s outgoing rows.	First matching row wins.

Every transition needs one source and one destination. A Continuous row with no trigger, a Continuous row carrying a result filter, Resume re-entry on a non-self row, an Any State row that is not Continuous, an On iteration row from a reference source, and an On finish row whose source Active Update repeats are all refused by validation. A faulting predicate faults the machine rather than falling through to a lower row, and a predicate the executing authority may not read is declined so the scan continues.

Use it for every handoff. Guide: transitions.

Any State

Hold the handoffs that are true from every mode in one ordered list. Source token any_state.

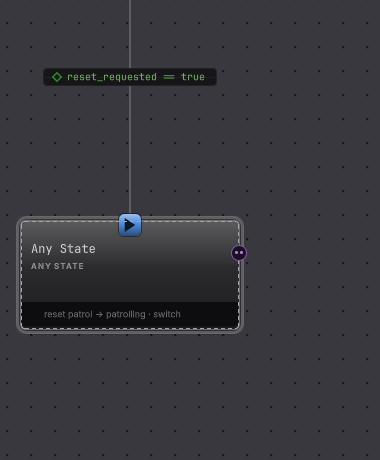

Figure 4. Any State with a machine-wide reset transition

Field	What to enter	Effect
Identity	Read only.	The name is fixed, and the rail says so: “Any State’s identity is fixed”.
Rail caption	Read only.	“These transitions are checked before the active state’s own list. A row targeting the active state is skipped.”
Precedence	Drag its outgoing rows.	First matching row wins, ahead of every local row. Configure each row by selecting the transition itself.

Any State is never entered, never reported as the active mode, and produces no result. It owns none of the lifecycle controls: no Entry, no Active Update, no Exit, no Run, no Lifetime, no Completion. Authoring refuses lifecycle work or semantic parameters on it. A machine holds at most one, reached by exactly one containment edge from its root, and it may source only transition rows. Each composed machine owns its own.

Use it for death, reset, or one machine-wide alarm. Guide: Any State.

Referenced State Machine

Run one eligible reusable machine as a parent mode’s Active Update. Source token state_machine_reference.

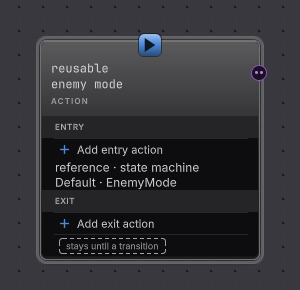

Figure 5. A Referenced State Machine with its selected module

Lifecycle

Enter

The parent's own Entry group still runs before the child activates.

Active

The selected child machine. Selection is rechecked while the child runs: an unchanged winner keeps its progress, a new winner cancels the old child and its owned suspensions.

Exit

The parent's own Exit group, with the same one bounded update as any other state.

Finished

The child's Success or Failure becomes this state's terminal Active Update result. A child fault stays Faulted.

Card	What to do	Effect
Candidates · ordered	Add candidate, pick a machine asset, drag the ordinary rows into priority order. A row offers Open and Remove.	The first eligible ordinary candidate wins. The picker excludes this host and anything cyclic or incompatible.
Eligibility	Author a condition group with typed predicates for the selected ordinary candidate, or press Remove eligibility.	No condition means eligible as soon as the scan reaches the row.
Value overrides	Set each declaration to Off or Override, then edit it with that declaration’s own typed editor.	Override changes that candidate’s effective declared value on this host alone. An invalid saved payload offers Reset to module default.
Default · unconditional	Add Default candidate.	Considered last, whatever its position. Without one, the reference parks when nothing is eligible.
Completion / Result events	The same parent state controls.	The child result feeds On finish rows, the Completion policy, or exposed result events.

Each candidate belongs to one reference. Missing assets, duplicate ownership, reference cycles, incompatible runtime storage, invalid overrides, and unusable eligibility all block a valid bake, and no asset is ever substituted by name. A reference source offers Continuous or On finish on its outgoing rows.

Use it to share one routine across actors. Guide: referenced machines.

Direct lifecycle action

Put one service or member operation in a lifecycle group. Source token action, or the member token for a member operation.

Figure 6. A direct lifecycle action inside a state card

Field	What to select or read	Effect
Behavior	The service behavior or member operation. A broken saved identifier reads Missing behavior (…) until you replace it.	Decides the operation-specific fields that follow.
Group	Entry, Active Update, or Exit.	Moves this row into that group. A row that omits an explicit phase belongs to Active Update.
Position	Reads n of count.	Execution order inside the group. Reorder in the owning state’s group list.
Owning state	Navigation row.	Opens the state that holds the row.
Group execution > Run	In order or Together.	The owning group’s policy, shown here so a row always names it.
Group execution > Lifetime	Once or Repeat.	Active Update rows only.

A member behavior then embeds the same Target, Member, Arguments, and Result rail documented in member nodes and bindings. A service action exposes only the fields its behavior descriptor owns, so an operation with no parameters adds no form. In Live a group reads Waiting or Complete while each row reads Succeeded, Failed, Canceled, Deferred or Skipped, and a resting row reads nothing at all.

Use it for the work a mode owes the game. Guide: states and lifecycle.

Hosted Behavior Tree controls

Use a whole behavior tree as Active Update while the state keeps the lifecycle. Source parameter active_update_source: behavior_tree.

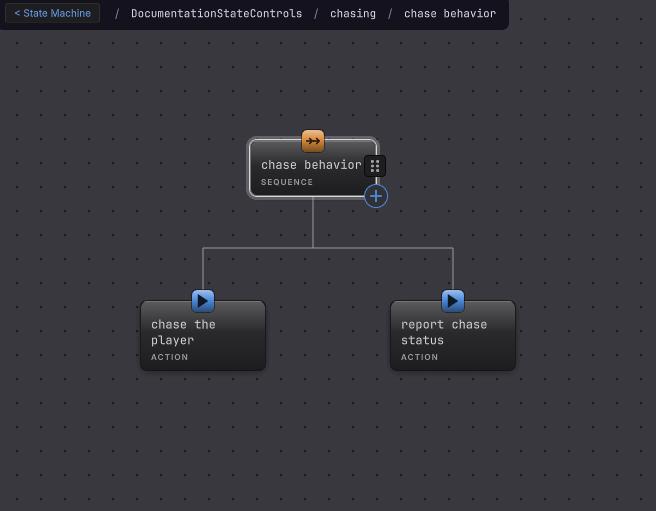

Figure 7. The hosted tree open in its own context, with a breadcrumb back to its owning state

Lifecycle

Enter

The state's own Entry group runs first. The hosted cycle starts after it succeeds.

Active

One hosted cycle at a time, at most one per machine update. A Running tree keeps its cursor and pending operations across updates.

Exit

A Switch or a self Restart cancels pending work inside the tree before the destination takes over. Push preserves the state and the hosted cursor.

Finished

The tree's terminal Success or Failure becomes the state's Active Update result, and it feeds an On finish row, an On iteration boundary, a result filter, or Completion.

Field	What to do	Effect
Active Update Source	Choose Behavior Tree.	Replaces direct update rows, which have to be gone first. The card gains a HOSTED BEHAVIOR TREE tag.
Choose a Behavior Tree…	Choose project tree for an existing asset, + Create here for a tree authored inside this graph file.	An assigned tree offers Edit tree; a project asset also offers Change and Clear.
Lifetime	Once or Repeat.	Once keeps the terminal result. Repeat restarts on the next update after a terminal result if no transition latched.
Result events > Success / Failure > EXPOSE	Toggle each independently.	Each enabled result emits its own graph event once when that result becomes terminal. Two exposed results cannot share one identity.
Completion	Stay, Return, or Finish.	Applies at the hosted terminal boundary exactly as it does for direct rows.

A missing project asset reads Missing tree · … with its last display name preserved, and no same-named tree is substituted. An inline tree is authored in its own behavior tree context and its nodes never mix into the machine canvas, which is also why the live machine canvas draws modes rather than the hosted tree’s nodes. Hosting runs one way: a behavior tree has no node that runs a state machine.

Use it when a mode needs a real decision inside it, as in the Horde Survival surge (sample). Guide: a tree inside a state.
