Racing Line

Race three graph-driven CPU cars, then read the one graph that decides for them while every driving rule stays in the racing code you already have.

Your car is the red one. The other three pick their own speed for every corner, close on you when you pull away, and get back on the road when one of them leaves it. One graph does all of that, and it contains no racing math at all.

The lights clear, the CPU field launches, and the leading car drops away off the route while the others keep racing, until the game sets it back down on the road behind them and it rejoins.
The lights clear, the CPU field launches, and the leading car drops away off the route while the others keep racing, until the game sets it back down on the road behind them and it rejoins.
Four low-poly formula cars staggered on the painted grid boxes of a wide gray start straight, facing a white overhead gantry whose light panel still shows a row of red lights, with white barrier walls along both track edges.
Figure 1. The grid a second before the lights clear. Red is the player car, and the other three each run their own instance of the same graph.

Play it in one minute

Under a minute

Scene
Assets/_Project/Scenes/RacingLine.unity
Select
In Play Mode, RacingLine > DriversRoot > car-cpu-1 > CpuGraphAgent(Clone) in the Hierarchy
Controls
Gamepad only. Join with Start; claim a car with Button West or Button East; start the race with Button South. Driving: steering is left stick X; the right trigger is the throttle; the left trigger brakes and reverses; the handbrake is Button East. Restart with Button North and return to setup with Select. This sample declares one control scheme called Gamepad and binds no keyboard key at all.
Goal
Beat three graph-driven CPU cars over three laps of the oval.

Plug in a gamepad first. InputSystem_Actions.inputactions declares a single control scheme called Gamepad, and every binding it holds is a gamepad path, from joining to driving. Without a pad you get a setup screen that reads press start to join and stays that way.

Keep at least one CPU car, or there is no graph in the race. The setup screen’s cpu cars value starts at 3 and accepts 0 to 4. Take it to 0 and you get a perfectly good race with no behavior agent anywhere in it, because the CPU cars are the only graph hosts this game spawns.

Open Assets/_Project/Scenes/RacingLine.unity. The project also carries an empty Assets/_Project/Scenes/Sample.unity left over from the project template: a camera and a light, nothing else. Ignore that one.

  1. Press Play, then press Start on your gamepad. Your card fills the local players slot and stops saying press start to join.

  2. Press Button West or Button East until a car is claimed for your slot. A claim is exclusive, and the race refuses to start while a joined slot has no car.

  3. Press D-pad left or D-pad right to land on the oval entry under showcase tracks. The current track panel names what you selected.

  4. Read the cpu cars value. It moves between 0 and 4: left stick press takes it down, right stick press takes it up. Leave it at 3 for this run.

  5. Press Button South to start. Five lights fill in sequence over about four seconds, and forward progress is locked until they clear, so holding the throttle early buys you nothing.

  6. Drive. Steering is left stick X; the right trigger is the throttle; the left trigger brakes and reverses; the handbrake is Button East.

In the first thirty seconds you should see the lights clear, all four cars launch together, and the three CPU cars brake for the first corner before you do. Watch one of them in your mirror for a lap: when you gain a big lead, the car behind gets fractionally quicker, which is the graph’s catch-up pressure doing its work.

There is no lose state here, only a finishing position. A car that leaves the road is not a failure either: it falls out of the world, waits half a second, and is then dropped back onto the route behind where it left, bouncing once as it lands. The whole trip takes about a second and a half. Button North restarts the same race, and Select returns you to setup with your roster intact.

These paths are the standalone project layout. When you import the packaged samples instead, the same folders arrive under Assets/BitQuirky/BehaviorTreesAndStateMachines/Samples/.

This is the chapter for the game that already has good code. Racing Line had a line follower, a pace envelope, a lap authority, and a vehicle model before any graph existed. The graph decides the order of things and hands rich values between the members that already knew how to do the work.

  • Binding to an existing API: Driving.PlanInput(driverNumber, vehicle, projection, context) is the racing code’s own operation, and the graph calls that exact overload. Nothing was reshaped into graph-friendly scalars to make it callable. See method bindings and targets and resolve.
  • Your own value types on the blackboard: VehicleState, RouteProjection, CpuRaceContext, and VehicleInputState are the project’s own readonly struct types. They travel between nodes whole. See variables and types.
  • Branch priority as a safety rule: one Selector orders Finished, Recovery, Drive, and Countdown, and that order is the whole guarantee that a finished car cannot be handed fresh input and that steering cannot fight a car in mid-recovery. See Choose.
  • Catch-up pressure you can read: a ref parameter accumulates the rubber band into one named blackboard value, and a member condition branches on it. See the catch-up pressure pattern.
  • A graph the game ticks itself: every agent here ships disabled and is advanced by RaceCoordinator, through CpuBehaviorGraphDriver.AdvanceRaceTick, calling TickManual once per race update, so graph evaluation lands between route sampling and input application and the same per-follower Live pause and step gate still applies. See GameObject agents.

What stays in C#, deliberately: the race phases and lap acceptance; the classification; the speed planner with its four personalities; drift and traction; physical recovery; barrier placement; tile track generation; split-screen cameras; the HUD; every scrap of human input. The graph never learned a racing rule.

The graph owns Your game code owns
_Project/Behavior/CpuRace.bqbehavior, one instance per CPU car, composed by the _Project/Prefabs/CpuGraphAgent.prefab host RaceDirector, an ordinary C# class holding the Setup, Countdown, Racing, and Finished phases plus lap acceptance, finish order, and the frozen classification
The branch order Finished, Recovery, Drive, Countdown, and the decision to call or skip each step Driving.PlanInput, Pacing, Drivers, CpuLineFollower, and CpuRubberBandMath: the actual driving and rubber-band mathematics
CpuBehaviorGraphDriver, the thin per-car adapter: it registers the driver number; samples four facts per tick; exposes the route projection plus the vehicle state; composes the race context; applies the planned input RacingVehicleController and the recovery phases, which move the car once the graph has handed over a VehicleInputState
One blackboard per car, holding catch_up_pressure plus the values each call stores RaceCoordinator, which owns the tick order, the slipstream leader search, and car spawning

Three things in this project look like the game and are not:

  • _Project/Behavior/CpuRaceReferenceVariant.bqbehavior is wired to no prefab, scene, or component, so editing it changes nothing you can drive. It carries a subset of the Pacing/GameMaster bindings CpuRace.bqbehavior carries, including pace_smooth’s sibling-restated sampleTick reuse, so one Reference Scan remap pass that repairs a renamed class or method repairs both graphs together.
  • RaceDirector is a C# state machine in the plain sense of the phrase: a class with a phase field and transition methods, kept in C# because its rules are pure and already tested. The project does author one real state machine graph: CpuRecoveryMode.bqbehavior, the small recovery companion every CPU car’s adapter runs alongside the main tree. See compare two cars live below.
  • Three nodes near the end of the drive Sequence (resolve vehicle body, resolve vehicle body again, and confirm one vehicle body) prove that GetComponent<Rigidbody>() binds straight from a graph with no wrapper method in the way. They run every tick and steer nothing.

Renaming Pacing or GameMaster.RacingTickCount breaks a binding both CpuRace.bqbehavior and CpuRaceReferenceVariant.bqbehavior store, and one Reference Scan remap pass repairs every occurrence in both graphs together, including a sibling binding that only reuses another binding’s result. Replacing a declared blackboard variable only breaks CpuRace.bqbehavior’s own binding: CpuRaceReferenceVariant.bqbehavior declares no blackboard variables, so that remap pass repairs CpuRace.bqbehavior alone.

The pace_smooth node in CpuRaceReferenceVariant.bqbehavior selected in Static, with racing_tick resolved among its own bindings and the Blackboard valid
Figure 2. The canonical CpuRaceReferenceVariant.bqbehavior binding, shown for comparison: its pace_smooth node resolves racing_tick to RacingTickCount. This image uses the saved source rather than a recorded remap pass.
The catch-up pressure crosses the surge threshold node selected in Static, reading Bindings valid with surge_pressure bound and declared on the Blackboard panel
Figure 3. A deliberately reproduced demonstration: declaring surge_pressure and removing catch_up_pressure through the Blackboard panel leaves surge_check’s bindings stale, and approving the offered surge_pressure replacement repairs them in the same remap pass. The shipped graph keeps catch_up_pressure.

Take the CPU car behind you closing a gap, and follow it from race data to throttle.

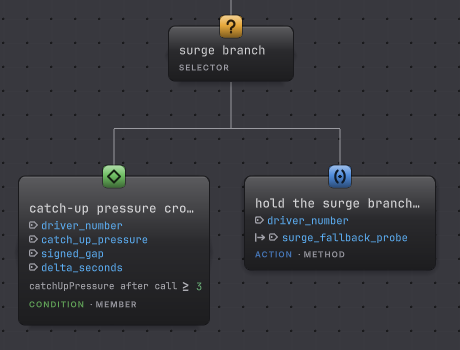

The surge branch on the CpuRace canvas at one hundred percent zoom: the surge branch selector, the catch-up pressure condition comparing catchUpPressure after the call against three, and the neutral fallback beside it.
Figure 4. The middle of the drive Sequence in Static, where the pace number turns into a decision. The threshold is a comparison you can read off the card.

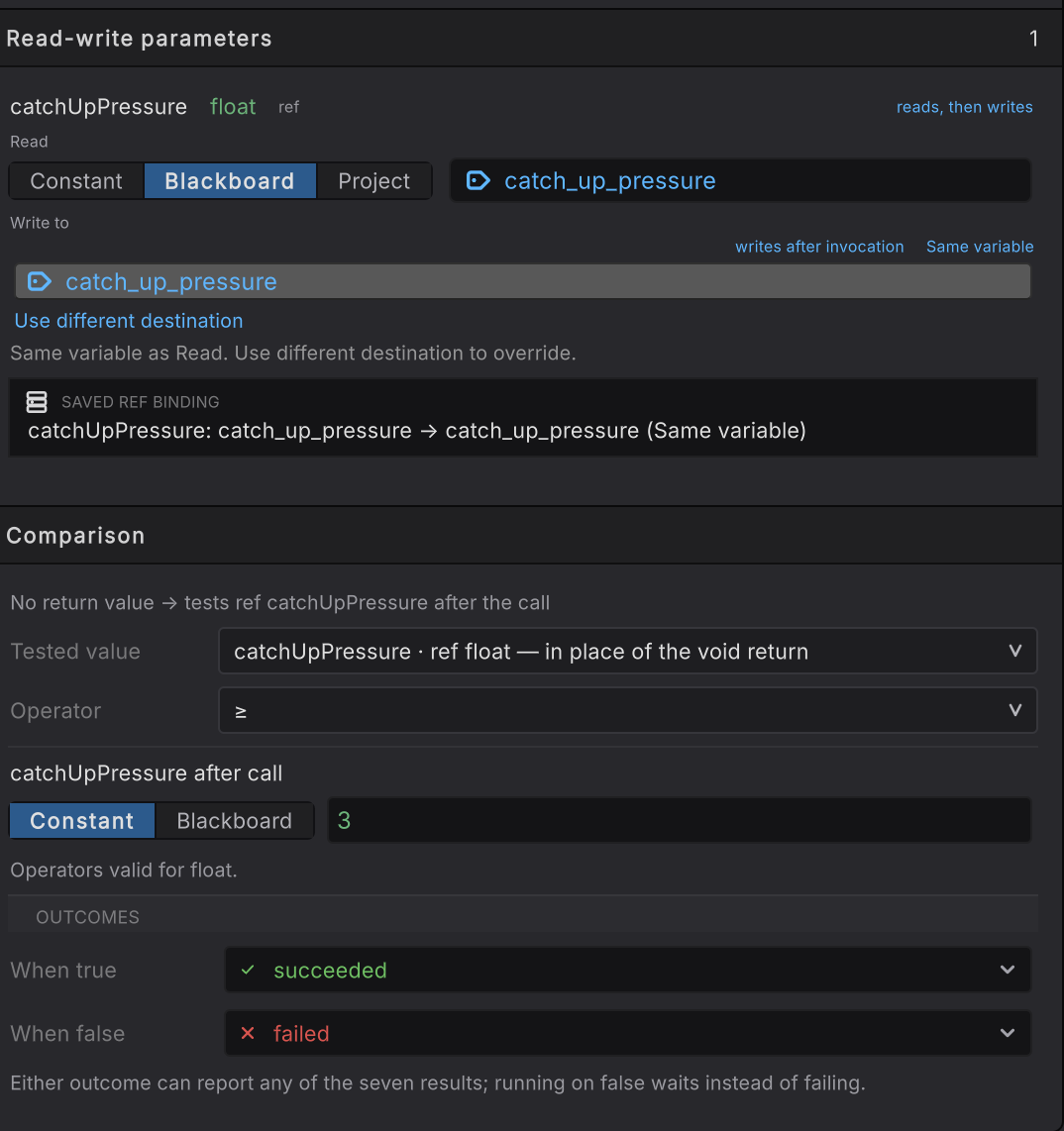

The rail for the catch-up pressure condition: Read-write parameters with catchUpPressure reading and writing catch_up_pressure, marked Same variable, then the Comparison card testing catchUpPressure after the call against the constant 3
Figure 5. The rail for catch-up pressure crosses the surge threshold. The ref parameter gets its own Read-write parameters row, and because the method returns void, Tested value names that parameter as the thing to compare.
  1. CpuBehaviorGraphDriver.Sample writes four facts into the blackboard before the tick: driver_number, exhibition, recovering, and delta_seconds. This is the binder boundary, and it carries facts only.

  2. The Selector tries hold after the finish first. GameMaster.HasDriverFinished(driver_number) is false mid-race, so that branch fails and the Selector moves on. ride out vehicle recovery reads recovering, also false, and fails too.

  3. plan and apply one drive step opens with two guards, GameMaster.IsRacingFor and Drivers.IsCpuDriverEnrolled. Both bind through reference slots to the shared driving assets, and both have to succeed before a single number is sampled.

  4. sample the signed gap calls GameMaster.SignedGapToPrimaryPlayerMeters(driver_number) and stores the result as signed_gap. Negative means this car is behind you.

  5. Pacing.SmoothPaceGap, Pacing.PlanPaceMultiplier, and Pacing.PlanCorneringPaceMultiplier turn that raw gap into smoothed_gap, pace_multiplier, and cornering_pace. Each one reads the previous value from the blackboard, which is how a per-car pace survives between ticks.

  6. The surge branch Selector tries the member condition catch-up pressure crosses the surge threshold. It calls Pacing.AdvanceCatchUpPressure, whose second parameter is ref float catchUpPressure, so its Read-write parameters card reads catch_up_pressure, the game’s own rubber-band rule moves it, and the new value goes straight back to the same variable, marked Same variable. The method returns void, so the Comparison card’s Tested value row names catchUpPressure to stand in for the return, and the condition compares its value after the call against 3. Pressure builds at 0.05 per meter of deficit toward a ceiling of 5, so about sixty meters behind you is where that branch starts winning. Below the threshold the condition fails and hold the surge branch neutral when not surging succeeds, keeping the Sequence alive.

  7. decide whether to commit to an overtake takes the adapter’s _slipstreamTow field and its CurrentVehicleState property as Project arguments, and stores commit_overtake. compose the race context packs both pace multipliers, the lap number, and that decision into one CpuRaceContext.

  8. plan the complete control input calls Driving.PlanInput with the driver number, the vehicle state, the route projection, and that context, and stores the returned VehicleInputState as planned_input. apply the planned control input hands it, with pace_multiplier, to CpuBehaviorGraphDriver.ApplyPlannedInput, which calls SetInput on the car.

To watch this happen, press Play with at least one CPU car, expand RacingLine › DriversRoot in the Hierarchy, open car-cpu-1, and select its CpuGraphAgent(Clone) child (Unity marks runtime instances with a (Clone) suffix, and the editor names the follower car-cpu-1 › CpuGraphAgent(Clone)). The editor attaches Live to that one car’s agent, and the blackboard panel shows its own catch_up_pressure climbing and unwinding. Selecting the car root instead gets you nothing: the agent lives on the child.

Both agents here tick in Manual mode: RaceCoordinator still owns the order, calling CpuBehaviorGraphDriver.AdvanceRaceTick once per car per race update, which in turn calls BehaviorAgent.TickManual on the primary graph and its recovery companion. That routes through the same pause/step gate every Live window has, so the editor’s own per-follower pause and step hold one car’s graph still while the rest of the scene keeps running, which compare two cars live below uses directly. These member calls complete inside one tick, so read the card that carries the latest result together with the stored value instead of waiting for a long RUNNING highlight.

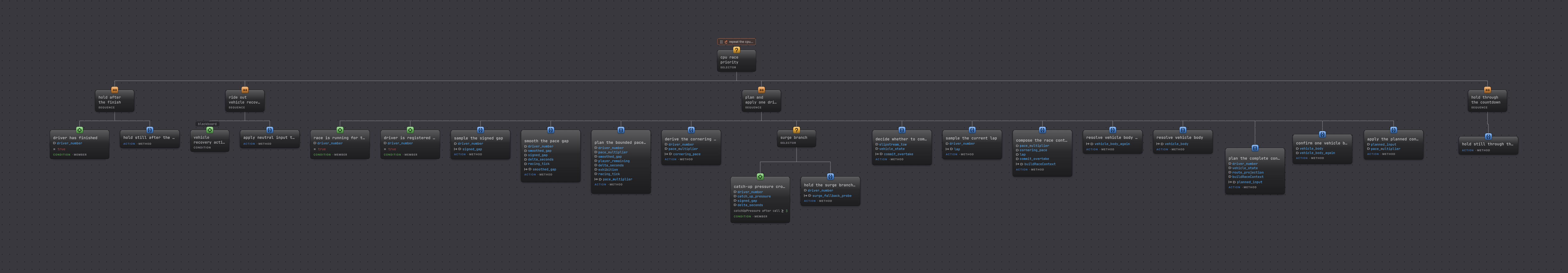

The complete CpuRace tree exported at native node scale, with the repeat root and the priority Selector at the top centre and the long drive Sequence running across the canvas to the apply node on the right.
Figure 6. The whole graph, for shape: four branches under one Selector, and one long Sequence inside the third of them. It is five thousand pixels wide, so open it at 100% to read the cards.

Join a second CPU car and the sample becomes two independent running instances of the same graph, each with its own blackboard and its own Task constants. Editing one never moves the other, which is the whole trust guarantee Live values rests on.

car-cpu-1's surge_check is committed from 3 to 0: its row names the authored 3 and its condition card reads ≥ 0 in the live tone. Selecting car-cpu-2 shows its own surge_check and card still at 3, and car-cpu-1 still reads 0 when selected again.
car-cpu-1's surge_check is committed from 3 to 0: its row names the authored 3 and its condition card reads ≥ 0 in the live tone. Selecting car-cpu-2 shows its own surge_check and card still at 3, and car-cpu-1 still reads 0 when selected again.
car-cpu-1’s CpuGraphAgent(Clone) attached Live with TASK surge_check = 3, BLACKBOARD catch_up_pressure = 0 and a collapsed HOST OWNED group
Figure 7. Nothing selected on the canvas, so the rail’s own Live values section shows its groups. surge_check is the Task constant on catch-up pressure crosses the surge threshold; catch_up_pressure is the Blackboard field that node writes back through its ref parameter.
  1. Set cpu cars to 2 in setup and start the race. Expand RacingLine › DriversRoot, select car-cpu-1’s CpuGraphAgent(Clone) child, and commit 0 into the surge_check Task row. The surge branch now resolves on its very first child regardless of catch_up_pressure, the row’s caption reads Live edit on this instance · authored 3 · saved graph unchanged., and the condition’s card on the canvas reads catchUpPressure after call ≥ 0, the 0 alone in the instance-blue live tone.

  2. Select car-cpu-2’s own CpuGraphAgent(Clone) child instead. Its own surge_check row and its card still read the authored 3, untouched by the edit on car one.

  3. Restart the race with Button North. During the countdown, select car-cpu-1 › CpuGraphAgent(Clone) › CpuRecoveryModeAgent, click recovering on the State Machine canvas, and raise its STATE row from the authored 2.2 to 6. Select car-cpu-1’s CpuGraphAgent(Clone) again and, one second after the lights go out, press the editor’s per-follower pause: car one’s graph holds its last input, and the car runs straight on at the first corner and drops out of the world. About three seconds later, select the companion again, which resumes the paused graph, and watch recovering hold until about six seconds after the fall. Live values walks each press.

car-cpu-2’s own CpuGraphAgent attached Live, its surge_check row reading 3, unaffected by car-cpu-1’s edit
Figure 8. Selecting a different agent is a different attachment, and a different running instance underneath it.
Game view with car-cpu-1 held motionless under the extended recovery hold
Figure 9. Car two keeps racing the whole time off this single-car follow camera’s frame, confirmed by car.state cpu-2 rather than by this still; it was never selected.

Copy the shape, not the racing.

  • Copy the branch order and the adapter’s job description. A safety branch, a recovery branch, the normal work, and a fallback hold is a shape that suits a companion, a turret, or a squad member as well as a car. The adapter pattern copies too: identity, a handful of sampled facts, one apply call.
  • Rebind the four reference slots. gameMaster, drivers, pacing, and driving point at this game’s shared authorities. Yours will be your own components or assets, and the picker records the exact declaration you choose, including non-public members.
  • Write new C# only for the boundary. If your planner already has a PlanInput-shaped operation, meaning one call that takes the actor’s state plus its situation and returns an intent, the graph can call it today. What you usually need to add is the small adapter that samples facts and applies the returned intent, and a [BehaviorMember] attribute on the fields or properties you want the graph to read.
  • Keep the tick honest. If your game has an update order that matters, set the agent’s UpdateMode to Manual and call TickManual from the system that owns that order, the way RaceCoordinator does through CpuBehaviorGraphDriver.AdvanceRaceTick. TickManual honors the same per-follower Live pause and step gate Update and FixedUpdate do; calling the lower-level TickOnce directly bypasses that gate, so an attached Live window can no longer hold your agent still.

For a match or round flow, author a state machine graph and integrate it on purpose. RaceDirector stayed in C# because its rules are pure and already tested; that is a reasonable outcome for a system with no per-instance authoring story.

When it goes wrong

SymptomCheckFix
No behavior agent exists anywhere in the running scene.Read the cpu cars value in setup.Raise it above 0. The CPU cars are the only graph hosts this game spawns.
The setup screen ignores every key you press.Confirm a gamepad is connected and that pressing Start filled a player slot.Connect a pad. This sample binds no keyboard key for joining, setup, or driving.
Selecting the CPU car opens no Live document.Look at which object in the Hierarchy you selected under DriversRoot.Select the CpuGraphAgent(Clone) child of the car. The agent component sits on that child, and the car root carries none.
Pause freezes the whole scene instead of one car.Read which pause you pressed.Unity global Pause stops the whole scene. Use the attached Live window's own per-follower pause instead, which holds one car's graph still through its TickManual gate while the rest of the race keeps running.
A graph edit changes nothing in a race.Confirm the file you edited was CpuRace.bqbehavior.Edit CpuRace.bqbehavior. CpuRaceReferenceVariant.bqbehavior drives nothing in a race; it exists so a Reference Scan remap pass has a second graph to repair.
An Object row reads assign a Driving in Static.Notice which mode the editor is in.Expect that in Static. The adapter fills every reference slot when it composes the agent at runtime.
The graph holds on the countdown branch after the lights clear.Inspect GameMaster.IsRacingFor and the driver number that branch received.Race phase comes from RaceDirector in C#, so chase the phase and the enrollment rather than the graph.
A bound member reports unavailable after you rename it.Open Reference Scan and let it read every saved graph.Approve and apply the offered replacement once in Remap stale references: the same pass repairs every occurrence in both CpuRace.bqbehavior and CpuRaceReferenceVariant.bqbehavior, including a sibling binding that only reused the renamed result, then let the generated provider rebuild.
