Flip it

The smallest node in the set. Inverter wraps one child and swaps its Success and Failure, so a branch can run because something did not work.

The problem

A Platformer patrol should only walk the route while the route is open. You already have a check that answers “is the route blocked”, and you want the opposite answer. Authoring a second, mirrored check means two facts that can disagree, and the day they disagree you have a bug in two places.

DocumentationDecorators.bqbehavior keeps that shape as the Inverter called not blocked over a Condition named route is blocked.

When to reach for it

• Reuse one authored check in both directions, so “door is open” and “door is not open” stay the same fact.
• Turn a member call’s failure into the thing you were waiting for: an interaction that reports Failure while an object is busy becomes Success once it stops being busy.
• Turn a succeeding probe into a branch guard, where success means “somebody already did this” and you want the branch that handles the other case.

See it

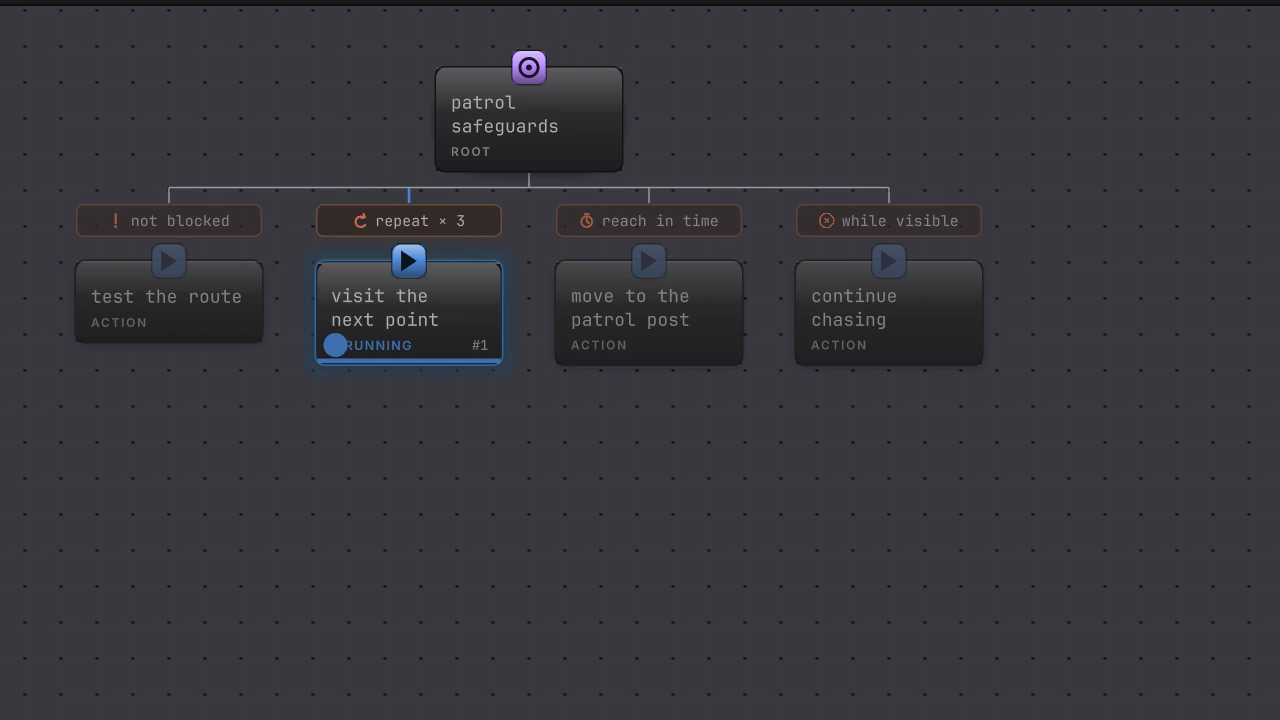

The route probe under the not blocked inverter holds the tick, then stops holding it: the inverter hands its branch's turn on and the next branch picks up the running pill.

A decorator has no card of its own: it renders as a chip on top of its child’s card, and that one card carries the status pill. On a GameObject agent that pill marks the node holding the tick, so what you watch is the cursor leaving the probe and the branch above it moving on with the flipped answer. The Graph runtime status card in the rail is where the result itself is written out, and an entity graph paints a result on every card it evaluated.

Do it

1. Open Assets/Platformer/Behavior/DocumentationDecorators.bqbehavior and select the Inverter called not blocked.

2. Read the rail. There are no value fields: the semantic line plus a Child reading, because the only thing to author is which single child it wraps.

3. Select the child, route is blocked. It reads the route_blocked blackboard variable.

4. Set route_blocked to true in the Live blackboard while an agent runs this graph. The child succeeds, the Inverter reports Failure, and the Sequence above stops on that result.

5. For a blackboard fact, read the result rule below before you rely on the false case. Comparing the variable directly, with the Condition’s own comparison set to == and the value false, reports Success when the route is open.

Figure 1. The pill is the decorator. It carries no settings, which is the whole appeal.

You should see

In Live that one card carries both readings on consecutive updates: SUCCESS for the condition’s own answer, then FAILURE as the Inverter’s flipped result on its way to the Sequence above. Two readings on one card is the clearest picture of what this node does.

Change one thing

Move the Inverter so it wraps the whole Sequence instead of the single condition. Now the branch reports Success whenever any step of that Sequence fails, which is rarely what you want and is the fastest way to feel why you keep the wrapped subtree small.

How it decides

Inverter swaps exactly two results and passes everything else through. It holds no state and ticks its child once per parent visit.

Result

Success

The child returned Failure.

Failure

The child returned Success.

Running

The child is still Running. Inverter has nothing to swap yet.

Child result	Inverter result
Success	Failure
Failure	Success
Running	Running
Blocked	Blocked
Interrupted	Interrupted
Timeout	Timeout
Authority mismatch	Authority mismatch

That fourth row is the one that surprises people. A blackboard Condition whose comparison is false reports Blocked, and Blocked passes through an Inverter unchanged, so wrapping a blackboard Condition inverts the true case alone. The product’s own test pins that pass-through.

Two ways to negate a blackboard fact:

• Invert the comparison inside the Condition: choose == and the value false, which reports Success when the variable is false.
• Use a Member condition and set its false mapping to Failed. Failure is the result an Inverter flips.

When it goes wrong

When it goes wrong

Symptom	Check	Fix
The branch never runs when the fact is false.	Look at whether the child is a blackboard Condition, which reports Blocked instead of Failure.	Invert the comparison inside the Condition, or bind a Member condition whose false mapping is Failed.
Everything under the Inverter behaves backwards.	Read how much subtree the decorator wraps.	Wrap the single check, and keep the work outside the Inverter.
A Timeout or Interrupted result was expected to flip.	Those results pass through by design.	Handle them in the branch above, where the typed reason is still readable.
Validation says a decorator needs exactly one child.	Count the children on the canvas.	Leave one child attached. Group several checks in a Sequence and wrap that.

Next

• Actions and conditions: where Blocked comes from and what a member condition maps.
• Only if: a gate that keeps checking instead of flipping.
• Inverter reference: the full result table.
